EXOTEK MC-500 Low Cost Moisture Detector - Pin-free
Hover to Zoom

Jual EXOTEK MC-500 Low Cost Moisture Detector - Pin-free



Spesifikasi EXOTEK MC-500 Low Cost Moisture Detector - Pin-free

OOD AND BUILDING MATERIALS MC-500 Low Cost Moisture Detector - Pin-free

The MC-500 allows moisture detections in wood down to a depth of approx. 40 mm. It is designed for quick-response detection of moisture content in wood and building materials as well as locating wet areas in floors, roofs and walls made of homogeneous material.

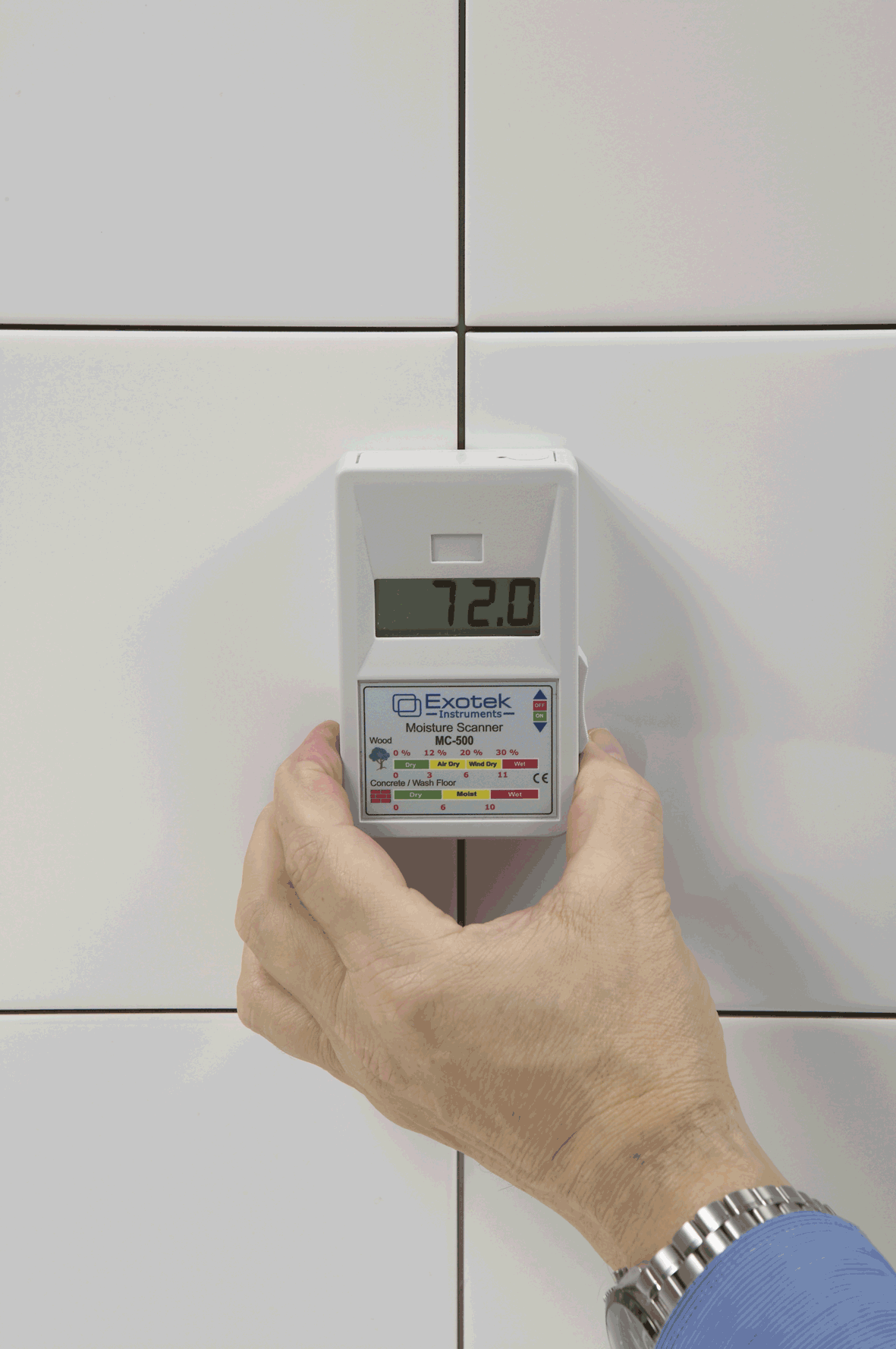

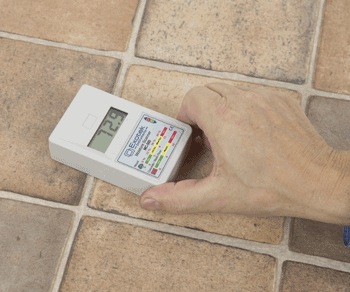

It is even able to detect moisture behind ceramic tiles or behind and under various floor or wall coverings. Simply place device on top of the surface to be examined – no injection into the object required!
FEATURES:
  • Pin-less & non-destructive: Capacitance measurement using a high frequency dielectric field
  • Could be used on different materials as wood, concrete, cement wash floor, brick, plaster, gypsum board, clinker and clay floor tiles, sandstone, marble, etc.
  • Quickly indicates the moisture content of materials
  • Moisture detection down to a depth of approx. 40 mm
  • Low battery indication
  • Impact resistant ABS housing
  • Complete with 9V battery
MC-500 can be used for:
  • Detection of moisture in wood and other building materials
  • Detection of leakage
  • Finding electrical cables and reinforcement bars



TECHNICAL SPECIFICATION

MC-500

MEASURING METHOD

Dielectric constant measurement

MEASURING RANGE-WOOD

0–30% moisture content

MEASURING RANGE-BUILDING MATERIAL

dry/moist/wet

SCANNING DEPTH APPROX.

40 mm

AUTOMATIC SWITCH OFF

Yes

LOW BATTERY WARNING

Yes

OPERATING TEMPERATURE

0 to +50°C

DISPLAY

3½-digit LCD-display

RESOLUTION

0,1%

HOUSING MATERIAL

ABS

SENSOR

Built in sensor

POWER SUPPLY

9V alkaline battery

CARRYING CASE

Artificial leather

DIMENSIONS (h x w x d)

106 x 67 x 30 mm

WEIGHT (INCL. BATTERY)

150 g

WARRANTY

1 year

Alat Laboratorium Umum

Untuk keterangan lebih lanjut, silahkan download PDF ini :
