Spesifikasi Pce Instruments Accelerometer PCE-VT 1100
Order no.: PCE-VT 1100
Pce Instruments Accelerometer PCE-VT 1100
The accelerometer is used as a hand-held measuring device for the individual assessment of vibrations on machines and systems. With the help of this accelerometer, the actual state can easily be determined on site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can be assessed. Thus, the accelerometer serves as a measuring device for a relative measurement on different machines.
The accelerometer serves essentially as precautionary or preventive maintenance of production machines. The accelerometer serves essentially as precautionary or preventive maintenance of production machines. Very often, the accelerometer is used to assess the state of smaller electric motors.
Features
- Measures speed, distance, acceleration
- Keeps the value after every measurement
- Easy to handle, powered by batteries
- Wide frequency range
- Automatic shut-down after 20 seconds of inactivity to protect battery life
- Low battery indicator
Specification
Parameter
|
Measuring Range
|
Frequency Range
|
Acceleration
|
0.01 ... 199.9 m/s² peak
|
10 Hz ... 1 kHz
|
Vibration speed
|
0.01 ... 199.9 mm/s rms
|
10 Hz ... 1 kHz
|
Displacement
|
0.001 ... 1.999 mm p-p
|
10 ... 500 Hz
|
Measurement accuracy
|
Acceleration: ≤ 3 %
Vibration speed: ±5 %, ±2 Digits
Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)
|
General specifications
|
|
|
Display
|
LCD, Response time approx. 1 second
|
Power supply
|
2 x 6 V CR2032 button cell
|
Battery life
|
about 5 hours (in continuous operation)
|
Environmental conditions
|
0 ... +40 °C / 32 ... 104°F, 0 ... 84 % r.H.
|
Dimensions
|
155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7"
|
Weight
|
ca. 40 g / 1.4 oz (incl. batteries)
|
Accessories

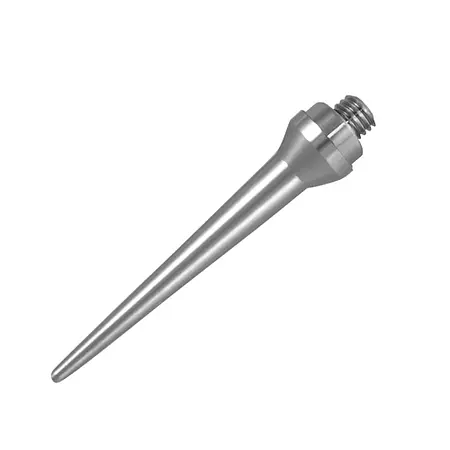

Order no.: PCE-VT-NF-45
Vibration Sensor PCE-VT-NF-45
Measuring tip 45mm length for vibration tester:
- PCE-VT 1100
- PCE-VT 1100S
Manufacturer: PCE Instruments

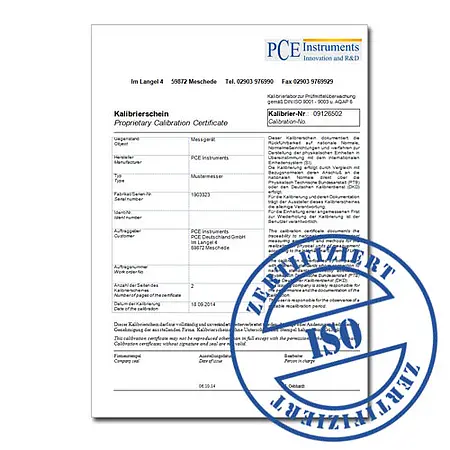

Order no.: CAL-V-I
ISO Calibration Certificate for Vibration Meter
ISO calibration certificate for PCE-VD, PCE-VT, PCE-VM and PCE-MSR series vibration meters
- Helps meet DIN ISO 9000 quality standards
- Calibration certificates are issued especially for the customer and are not returnable
Manufacturer: PCE Instruments
Similar items

Order no.: PCE-VT 2700S
Condition Monitoring Meter PCE-VT 2700S Incl. ISO Calibration Certificate
PCE-VT 2700S is a factory-calibrated (certificate included) portable digital battery-powered handheld condition monitoring vibration meter used to measure the radial and axial vibration of industrial machines, equipment and parts such as bearings and gearboxes. The PCE-VT 2700S comes with a special attachment to adapt the probe for handheld use.
- Frequency range: 9 Hz ... 1 kHz (in 1 kHz mode) / 9 Hz ... 10 kHz
(in 10 kHz mode) acceleration; 10 Hz ... 1 kHz velocity /
displacement
- Resolution: 0.1 m/s? / 0.1 yd/s?; 0.1 mm/s / 0.003 in/s ; 1 µm /
3.3814e-14 oz ; 1 rpm
- Accuracy: ± 5% of reading + 2 digits
- ISO calibration certificate included
Catalogue: Measuring Instruments / Test Meters / Condition Monitoring
Manufacturer: PCE Instruments

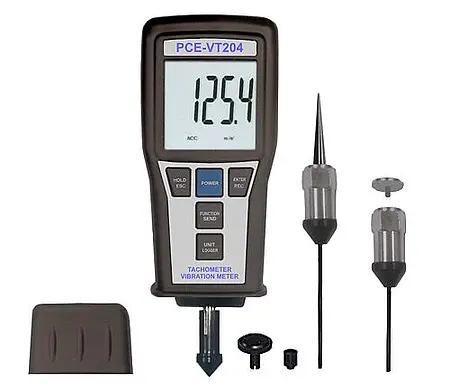

Order no.: PCE-VT 204
Condition Monitoring Vibration Meter PCE-VT 204
PCE-VT 204 is a multifunction handheld vibration meter for condition monitoring. PCE-VT 204 has the ability to accurately measure both rotation and vibration. An ideal tool for the testing and inspection of machine parts and components such as motors, transmissions, gears, gear boxes and wheels, this multi-purpose device measures revolutions per minute (RPMs) as well as three-axis vibration, i.e., speed or velocity, displacement and acceleration.
- Vibration measurement: Velocity or speed, acceleration and displacement
- RPM measurement: Contact / mechanical and noncontact / optical
- Internal memory for up to 1000 readings
- Min / max and data hold functions
- RS-232 port
Catalogue: Measuring Instruments / Test Meters / Condition Monitoring
Manufacturer: PCE Instruments

Order no.: PCE-LES 100
Condition Monitoring Rotation Meter PCE-LES 100
The PCE-LES 100 Rotation Meter combines LED technology with compact and accurate electronics, which controls the sequence and timing of flash over the entire measuring range. Thanks to LED technology, the Rotation Meter does not need periodic changing of bulbs. The Rotation Meter is sent to you calibrated (by the manufacturer PCE Instruments).
- Range: 60 ... 99,990 r.p.m / 1 ... 1,666 Hz
- Display: 5 digits LCD
- Impulses/Flash: Possibility of duplication and division/fine tuning
- Offset: Yes, 360º
Catalogue: Measuring Instruments / Test Meters / Condition Monitoring
Manufacturer: PCE Instruments

Order no.: PCE-VT 2700
Condition Monitoring Meter PCE-VT 2700 Incl. ISO Calibration Certificate

PCE-VT 2700 is a factory-calibrated (certificate included) handheld portable digital battery-powered condition monitoring vibration meter used to measure the radial and axial vibration of industrial machines, equipment and parts such as bearings and gearboxes.
- Frequency range: 9 Hz ... 1 kHz (in 1 kHz mode) / 9 Hz ... 10 kHz
(in 10 kHz mode) acceleration; 10 Hz ... 1 kHz velocity /
displacement
- Resolution: 0.1 m/s2 / 0.1 yd/s2; 0.1 mm/s / 0.003 in/s ; 1 µm /
3.3814e-14 oz ; 1 rpm
- Accuracy: ± 5% of reading + 2 digits
- Factory calibration certificate included
Catalogue: Measuring Instruments / Test Meters / Condition Monitoring
Manufacturer: PCE Instruments
What's In The Box:
1 x Accelerometer PCE-VT 1100
1 x PCE-VT-NF-10 standard probe (length 10mm)
2 x Batteries
1 x Carrying case
1 x Storage box
1 x User manual
