Pce Instruments Airflow Meter PCE-TA 30
Hover to Zoom

Jual Pce Instruments Airflow Meter PCE-TA 30



Spesifikasi Pce Instruments Airflow Meter PCE-TA 30

Pce Instruments Airflow Meter PCE-TA 30

Order no.: PCE-TA 30

Description

The PCE-TA 30 air flow meter can measure air velocity, air temperature and air flow. The PCE-TA 30 air flow meter shows measurement values in its large backlight LCD display. The air flow meter shows the current value on the display as well as max. and min. values. The PCE-TA 30 air flow meter has a flexible probe with a length o 40 cm which makes it possible to use in areas here there is limited space to measure, such as cooling systems. The PCE-TA 30 air flow meter is the ideal tool for the assembler to perform instantaneous measurements. Thanks to its auto shut-off the PCE-TA 30 air flow meter can protect battery life. The PCE-TA 30 is very easy to use just with 4 keys and it is suitable for its use in different sectors thanks to its compact design.

- Measures air velocity, temperature and flow
- Different units can be selected
- LCD display with simultaneous indication of air velocity and temperature
- Easy-to-use (with 4 keys)
- Indication of max. and min. values
- Data-Hold function
- Auto shut-off  (to protect battery life)
- Flexible probe
- Backlight display
- A box is delivered



Specification

Technical specifications
Measurement ranges with indication of the corresponding units:

- m/s
- ft/min
- knots
- km/h
- mph
- ft3/min
- ºC

1,0 ... 30,0
196 ... 5900
1,9 ... 58,0
3,6 ... 108,0
2,2 ... 67,0
0,0 ... 999,900
-10 ... 60,0

Resolution
- m/s
- ft/min
- knots
- km/h
- mph
- ft3/min
- ºC

0,01
1,0
0,1
0,1
0,1
0,1
0,1

Accuracy
- m/s
- ft/min
- knots
- km/h
- mph
- ºC

±3% ±0,2
±3% ±40
±3% ±0,4
±3% ±0,8
±3% ±0,4
±1,5

Display

LCD display

Sensor

flexible probe
probe length: 300 mm
Ø probe: 27,2 mm

Operating conditions

air flow meter: 0 ºC ... +40 ºC / <95% H.r.
thermal probe: 0 ºC ... +50 ºC / <80% H.r.

Power

1 x 9 V battery

Auto shut-off

yes, after 5 min of inactivity (to protect battery life)

Dimensions

163 x 45 x 34 mm

Enclosure

ABS plastic

Weight

257 g



Similar items

Airflow Meter incl. ISO Cal Certificate PCE-007-ICA

Order no.: PCE-007-ICA

Airflow Meter incl. ISO Cal Certificate PCE-007-ICAISO Calibration

This airflow meter is very economical. With this airflow meter you can measure wind speed and air temperature.

- Speed measurement up to 45 m/s or 100 mph
- Wind speed: 0.01 m/s, accuracy ±3% ±0.1
- Air temperature: 0.2°C / 32.4°F, accuracy ±1°C / 33.8°F
- Air flow: 0.001 to 100, accuracy calculated from the wind speed and surface
Incl. ISO calibration certificate

Catalogue: Measuring Instruments / Test Meters / Airflow Meter

Manufacturer: PCE Instruments

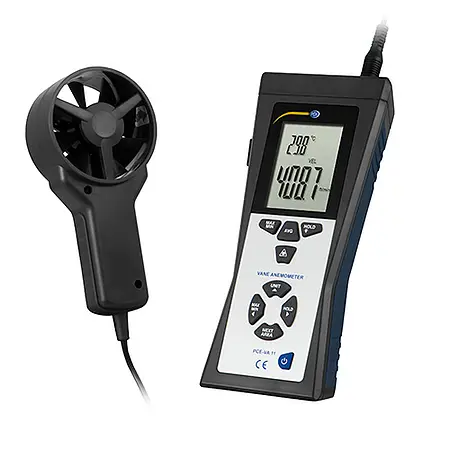

Airflow Meter PCE-VA 11

Order no.: PCE-VA 11

Airflow Meter PCE-VA 11

The Airflow Meter PCE-VA 11 is an extensively used measuring instrument. This airflow meter offers the opportunity to determine air speeds, air temperature and infrared temperature. The illuminated LCD allows comfortable readings and facilitates use in dimly lit areas.
- Air speed range: 0.4 ... 30 m/s / 0.9 ... 67 mph
- Air flow range: 0 ... 9999 CFM / CMM
- Air temperature range: -10 ... 60°C / 14 ... 140°F
- IR temperature range: -50 ... 500°C / -58 ... 932°F

Catalogue: Measuring Instruments / Test Meters / Airflow Meter

Manufacturer: PCE Instruments

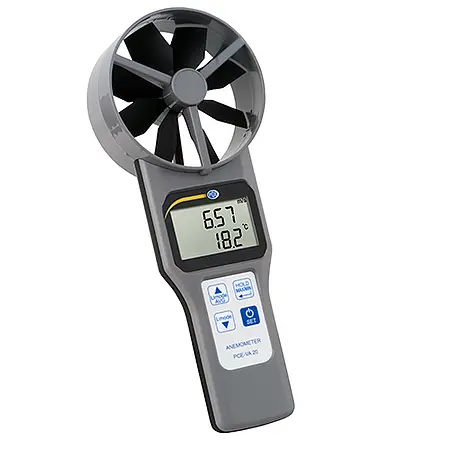

Multifunction Airflow Meter PCE-VA 20

Order no.: PCE-VA 20

Multifunction Airflow Meter PCE-VA 20

PCE-VA 20 is a multifunction airflow meter for assessing wind, weather, indoor / outdoor environmental climate conditions as well as for testing heating, ventilation and air conditioning or cooling (HVAC) systems. This combination anemometer-hygrometer-thermometer features a 10 cm / 3.9" Ø fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.
- Measures air flow velocity, volume flow, relative humidity, air temperature, dew
  point temperature and wet-bulb temperature
- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of
  measured value + 0.3 m/s) when more than 20 m/s
- Resolution: 0.1



Catalogue: Measuring Instruments / Test Meters / Airflow Meter

Manufacturer: PCE Instruments



Airflow Meter PCE-007

Order no.: PCE-007

Airflow Meter PCE-007

This airflow meter is very economical. With this air flow meter you can measure wind speed and air temperature. Once you have the right cross section, the air flow meter will show the air flow. All the test instruments come manufacturer calibrated. ISO certification can be made as an option.

- Speed measurement up to 45 m/s or 100 mph
- Wind speed: 0.01 m/s, accuracy ±3% ±0.1
- Air temperature: 0.2°C / 32.4°F, accuracy ±1°C / 33.8°F
- Air flow: 0.001 to 100, accuracy calculated from the wind speed and surface

Catalogue: Measuring Instruments / Test Meters / Airflow Meter

Manufacturer: PCE Instruments



Delivery contents:

1 x PCE-TA 30 air flow meter with flexible probe
1 x battery
1 x box
1 x user's manual

Alat Laboratorium Umum

Untuk keterangan lebih lanjut, silahkan download PDF ini :
