Pce Instruments Anemometer PCE-WSAC 50-710
Hover to Zoom

Jual Pce Instruments Anemometer PCE-WSAC 50-710



Spesifikasi Pce Instruments Anemometer PCE-WSAC 50-710

Pce Instruments Anemometer PCE-WSAC 50-710

Order no.: PCE-WSAC 50-710

PCE-WSAC 50 is an airflow meter alarm controller that displays the current wind speed as well as the average wind speed of the last 2 and 5 minutes. A pre-alarm and full alarm can be activated based on preset values. If wind speeds are higher than the preset values, a pre-alarm is first applied before the full alarm is issued. Both alarms are delivered visually and audibly. If the pre-alarm is triggered, a yellow LED will flash on the front of the unit and a beep will periodically be emitted as a warning tone. If the full alarm is triggered, a red LED will flash on the front of the unit and a beep will continuously be emitted.

PCE-WSAC 50 allows measurement of the slightest of wind movements. This airflow meter alarm controller is used for a variety of wind monitoring applications in industries such as construction, mining, renewable energy and manufacturing. If necessary, a relay can also be connected to the controller.
- Pre-alarm and full alarm with visual and audible warnings
- Allows measurement of the slightest wind movements

- Power supply: 230 V AC

- Signal input: 4...20 mA

- Bright, easy-to-read LED display
- Simple to use



Specification

Power supply

230 V AC


Supply voltage for sensors (output)

12 V DC
24 V DC

Measuring range

0 ... 50 m/s or 0 ... 110 mph

Measuring accuracy

± 3% of measuring range

Signal input

4 ... 20 mA


Alarm relay



2 NO/NC relays with max. load of 220 V AC / 10 A



Operating temperature

-20 ... +60 °C / -4 ... +140 °F

Dimensions

197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7"

Weight

Approx. 400 g / 0.89 lb



Accessories

Remote Maintenance Module PCE-SM61

Order no.: PCE-SM61

Remote Maintenance Module PCE-SM61

The remote maintenance module PCE-SM61 allows you to quickly and easily query your process data via the Internet. Any device with RS485 interface can be connected to the remote maintenance module. The data is retrieved via a web browser and can be carried out simultaneously by the PC, smartphone, tablet, etc., and by several users. In addition to the data query, the remote maintenance module can trigger alarms. The configuration can be done via USB or Ethernet interface.

- up to 100 devices with 25 registers can be connected
- Configuration via webbrowser
- Interface: RS485, Ethernet
- Memory: 1 GB Flash
- additional inputs / outputs: digital input or relay output (selectable)

Catalogue: Control Systems / Remote Maintenance Module

Manufacturer: PCE Instruments

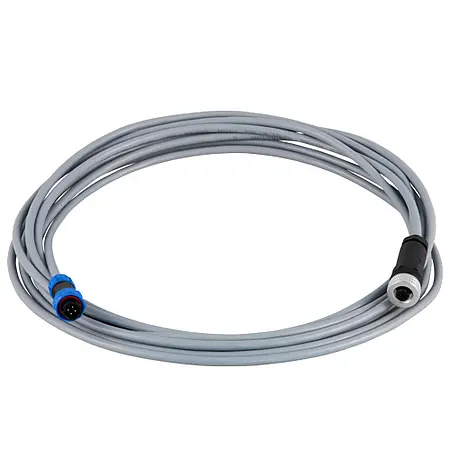

Sensor cable PCE-WSAC 50-SC25 (25m)

Order no.: PCE-WSAC 50-SC25

Sensor cable PCE-WSAC 50-SC25 (25m)

25 m Sensor cable for connecting the wind sensors PCE-FST-200-201 to the wind sensor PCE-WSAC 50.

- 25 m sensor cable
- M12 coupling on the sensor side
- M12 connector on the device side

Manufacturer: PCE Instruments

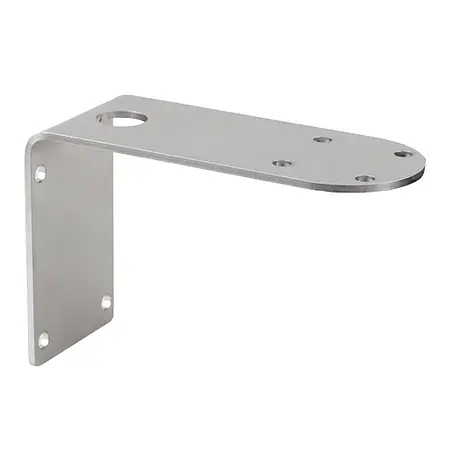

Mounting bracket PCE-FST 200-201 MNT

Order no.: PCE-FST 200-201 MNT

Mounting bracket PCE-FST 200-201 MNT

Mounting bracket suitable for the wind sensor PCE-FST 200-201. The mounting angle can be used to mount the wind sensor for example on a roof.

- 90 ° mounting angle
- With cable grommet
- Stainless steel
- For PCE-FST 200-201

Manufacturer: Laser Pro Tec GmbH





Airflow Meter PCE-FST-200-201-U

Order no.: PCE-FST-200-201-U

Airflow Meter PCE-FST-200-201-U

The wind speed sensor is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form.


- Output signal: 0 … 10 V
- Operating voltage: 12…36 V DC
- Measurement reading range: 0.5 m/s…50 m/s

Catalogue: Measuring Instruments / Test Meters / Airflow Meter

Manufacturer: PCE Instruments




Airflow Meter PCE-FST-200-201-I

Order no.: PCE-FST-200-201-I

Airflow Meter PCE-FST-200-201-I

The wind speed sensor is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form.


- Output signal: 4 … 20 mA
- Operating voltage: 12…36 V DC
- Measurement reading range: 0.5 m/s…50 m/s

Catalogue: Measuring Instruments / Test Meters / Airflow Meter

Manufacturer: PCE Instruments



Airflow Meter PCE-FST-200-201-H-U

Order no.: PCE-FST-200-201-H-U

Airflow Meter PCE-FST-200-201-H-U

The wind speed sensor is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form. With heating.
- Output signal: 0 … 10 V
- Operating voltage: 12…36 V DC
- Measurement reading range: 0.5 m/s…50 m/s



Catalogue: Measuring Instruments / Test Meters / Airflow Meter

Manufacturer: PCE Instruments

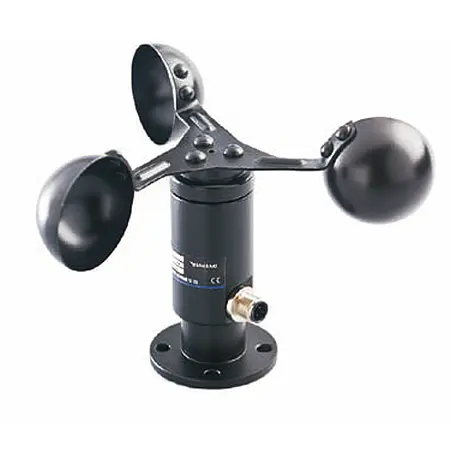

Airflow Meter PCE-FST-200-201-H-I

Order no.: PCE-FST-200-201-H-I

Airflow Meter PCE-FST-200-201-H-I

The wind speed sensor is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form. With heating.
- Output signal: 4 … 20 mA
- Operating voltage: 12…36 V DC
- Measurement reading range: 0.5 m/s…50 m/s

Catalogue: Measuring Instruments / Test Meters / Airflow Meter

Manufacturer: PCE Instruments



In The Box:

1 x PCE-WSAC 50-710 Anemometer
1 x user manual
1 x ISO Calibration certificate
