Pce Instruments Differential Pressure Vacuum Gauge PCE-910
Hover to Zoom

Jual Pce Instruments Differential Pressure Vacuum Gauge PCE-910



Spesifikasi Pce Instruments Differential Pressure Vacuum Gauge PCE-910

Pce Instruments Differential Pressure Vacuum Gauge PCE-910

Order no.: PCE-910

Portable handheld manometer measures differential pressure from ± 1 to 2000 mbar (± 0.01 to 29.00 psi) / Optional PC software with RS-232 cable sold separately as a data transfer accessory

PCE-910 is a portable handheld digital differential pressure vacuum gauge, meter or manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-910 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.

The PCE-910 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis. If your computer doesn't have an RS-232 interface, you may acquire an RS-232 to USB adapter (see accessories tab for details).



Features


- ± 1 to 2000 mbar (± 0.01 to 29.00 psi) measuring range
- 10 measurement units: psi, mbar, inH2O, mH2O, inHg, mmHg, Torr, Pa / kPa, atm, kg/cm²
- Designed to measure air, gas and non-corrosive liquid pressures
- Min, max and data hold functions
- RS-232 port / interface
- 15 mm / 0.6 in LCD screen
- Optional PC software with RS-232 cable sold separately as a data transfer accessory



Specification

mbar

Resolution: 1
Range: ± 2000

psi

Resolution: 0.01
Range: ± 29.00

inH2O

Resolution: 0.5
Range: ± 802.0

mH2O

Resolution: 0.01
Range: ± 20.40

inHg

Resolution: 0.02
Range: ± 59.00

mmHg

Resolution: 1
Range: ± 1500

Torr

Resolution: -
Range: -

Pa / kPa

Resolution: -
Range: -

atm

Resolution: 0.001
Range: ± 1.974

kg/cm²

Resolution: 0.001
Range: ± 2.040

Accuracy

± 2% (full range)

Reproducibility

± 1%

Response time

0.8 second

Interface

RS-232 port

Power supply

1 x 9V block battery

Housing material

Plastic

Housing dimensions

Approx. 180 x 72 x 32 mm / 7.09 x 2.84 x 1.26 in

Weight

Approx. 210 g / < 1 lb

Warning:

***Exceeding the maximum pressure range will destroy the sensor***



Accessories

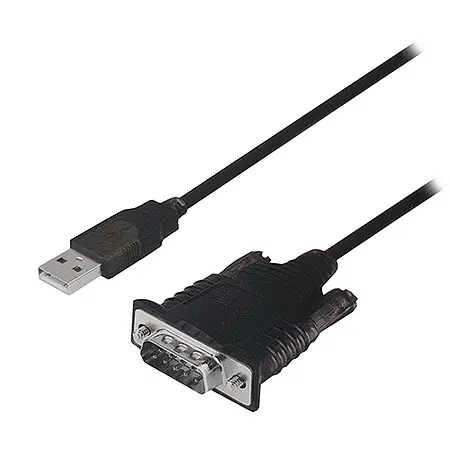

Adaptor RS-232 to USB

Order no.: RS232-USB

Adaptor RS-232 to USB

Converter RS-232 (serial, D-Sub, 9-pin) to USB, allows connection to PC and laptop with USB port

- Converter USB 2.0 to Serial RS232

- easy installation

- plug and play capable

- does not need an interrupt (IRQ)

- connect your PC to serial device ports

- USB specification v.2.0 backward compatible to v1.1.

- Transfer rate up to 1 Mbit / s

- Bus power supply, no external power required

- Cable length 1.5 m

Manufacturer: USB ONLINE INT'L ELECTRONICS LIMITED

Price excl. VAT &. delivery
2 year Warranty



Software SOFT-LUT-D

Order no.: SOFT-LUT-D

Software SOFT-LUT-D

The pack includes software and an RS-232 cable. This allows for data to be tranferred directly from the device to a computer. Data can also be exported to other software applications such as Excel. … [more]

Manufacturer: PCE Instruments

Price excl. VAT &. delivery
2 year Warranty

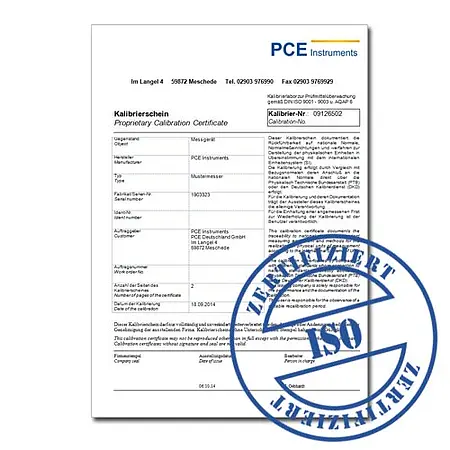

ISO Calibration Certificate CAL-PM

Order no.: CAL-PM

ISO Calibration Certificate CAL-PM

ISO calibration certificate issued by certified laboratory or calibration provider

Manufacturer: PCE Instruments

Price excl. VAT &. delivery
2 year Warranty



Silicon Tubes for PCE-Series Pressure Meters

Order no.: SS-AZ

Silicon Tubes for PCE-Series Pressure Meters

2 x tubes for use with PCE-series pressure meters
- Each tube is 2 m long, with an inner diameter of 3.5 mm

Manufacturer: Gördes-Pneumatik GmbH & Co. KG

Price excl. VAT &. delivery
2 year Warranty



Stainless Steel Tube Adapter PCE-91x-CT

Order no.: PCE-91x-CT

Stainless Steel Tube Adapter PCE-91x-CT

1 x Stainless Steel Tube Adapter PCE-91x-CT (2 pcs) [more]

Manufacturer: PCE Instruments



What's In The Box:

1 x PCE-910 differential pressure vacuum gauge
1 x 9V block battery
2 x Stainless steel tube adapters
1 x 1 m / 3 ft long silicon tube
1 x User manual



Alat Laboratorium Umum

Untuk keterangan lebih lanjut, silahkan download PDF ini :
