Pce Instruments Infrared Thermometer PCE-TC 28
Hover to Zoom

Jual Pce Instruments Infrared Thermometer PCE-TC 28



Spesifikasi Pce Instruments Infrared Thermometer PCE-TC 28

Pce Instruments Infrared Thermometer PCE-TC 28

Order no.: PCE-TC 28

Description

The infrared camera was designed for taking non-contact temperature measurements. To get accurate readings, the emissivity of the infrared camera can be adjusted, depending on the operation purpose. Besides taking infrared images, the infrared camera can also take normal pictures, as well as a mixture of both, due to the built-in digital camera. This makes it easier for the operator to aim at the target and to recognize and locate hotspots.

The infrared camera is well-suited for a large variety of applications. This includes monitoring of machinery, building inspection or different applications in the hobby and leisure domain, for example. The infrared camera comes with a built-in SD card slot for Micro SD cards. The device supports different memory card capacities. It is possible to store up to 6000 images per gigabyte on the SD card of the infrared camera.



- built-in digital camera

- adjustable emissivity

- fast sampling time

- MIN/MAX indication

- exchangeable Li-ion battery

- auto power-off function

- TFT display with backlight

- protective cap for the lens



Specification

Temperature



Measurement range

-20 ... 300°C / -4 ... 572°F

Accuracy

±2 %, ±2°C

Emissivity correction on screen

Yes

Setting of background temperature

Yes


Frequency image recording

9 Hz

Type of detector

Uncooled pyroelectric ceramics

Thermal sensitivity

≤150 mK

Infrared spectral band

6.5 ... 14 µm

Camera

48608 Pixel

Field of view

38 x 38°

Mechanism of focus

Fixed focus

Parallax correction of visual and IR image

0.5 m / 19.7 in, 1.0 m / 39.4 in, 2.0 m / 78.7 in, 3.0 m / 118.1 in

Picture-in-picture coverage of visual and IR image

0 / 25 / 50 / 75 / 100 %

Hot / cold spot localisation

Yes

Image recording and data storage



Image recording

Image can be viewed before saving

Storage medium

MicroSD card can save 6000 images per GB

File format

.bmp

Memory view

Possibility to scroll through all saved images

Operating temperature

0 ... 50°C / 32 ... 122°F

Storage temperature

-20 ... 60°C / -4 ... 140°F

Relative air humidity

10 ... 90%, non-condensing

Display

2.2" diagonal, (320 x 240 TFT LCD)

Emissivities

Material

Thermal emissivity

Material

Thermal emissivity

Asphalt

0.90 ... 0.98

Fabric (black)

0.98

Concrete

0.94

Human skin

0.98

Cement

0.96

Foam

0.75 ... 0.80

Sand

0.90

Coal

0.96

Soil

0.92 ... 0.96

Lacquer

0.80 ... 0.95

Water

0.92 ... 0.96

Lacquer (matt)

0.97

Ice

0.96 ... 0.98

Rubber (black)

0.94

Snow

0.83

Plastics

0.85 ... 0.95

Glass

0.90 ... 0.95

Wood

0.90

Ceramics

0.90 ... 0.94

Paper

0.70 ... 0.94

Marble

0.94

Chromium (oxidised)

0.81

Plaster

0.80 ... 0.90

Copper (oxidised)

0.78

Mortar

0.89 ... 0.91

Iron (oxidised)

0.78 ... 0.82

Brick

0.93 ... 0.96

Textiles

0.90



Accessories

ISO Calibration Certificate for PCE-TC Series

Order no.: CAL-PCE-TC

ISO Calibration Certificate for PCE-TC Series

- To comply with your DIN ISO 9000 quality management system.
- Calibration check on certified black bodies.
- Checked over the measuring range of the thermal imager, but without indication of the measuring points in the certificate.



Similar items

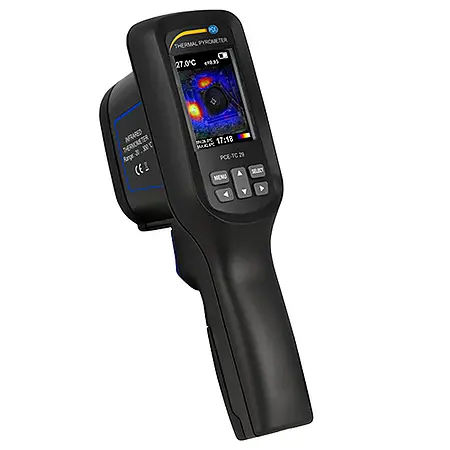

Infrared Thermometer PCE-TC 29

Order no.: PCE-TC 29

Infrared Thermometer PCE-TC 29

PCE-TC 29 is an infrared thermometer imaging camera used for visual inspection and non-contact infrared (IR) temperature measurement. Ideal for industrial use in electrical, mechanical, and building installations (such as in the auditing of machines, engines, or heating, ventilation, and air conditioning (HVAC) systems), this affordable infrared imager captures and saves 60 x 60 pixel IR resolution images to the included MicroSD card memory.

- IR Resolution: 60 x 60 pixels
- Temperature measuring range: -20 ... 300 °C / -4 ... 572 °F
- IR image, visual image, picture-in-picture
- Hot / cold spot localisation
- Field of view: 20 x 20 °
- Adjustable emissivity from 0.1 ... 1.0
- Frequency image recording: 6 Hz
- Data storage: Micro SD



In The Box:

1 x Infrared Thermometer PCE-TC 28

1 x Rechargeable Li-Ion battery

1 x USB data cable

1 x Mini tripod

1 x Mains adapter

1 x Carrying case

1 x User manual



Alat Laboratorium Umum

Untuk keterangan lebih lanjut, silahkan download PDF ini :
