Pce Instruments Ultrasonic Thickness Tester PCE-TG 50
Pce Instruments Ultrasonic Thickness Tester PCE-TG 50
Pce Instruments Ultrasonic Thickness Tester PCE-TG 50
Hover to Zoom

Jual Pce Instruments Ultrasonic Thickness Tester PCE-TG 50



Spesifikasi Pce Instruments Ultrasonic Thickness Tester PCE-TG 50

Pce Instruments Ultrasonic Thickness Tester PCE-TG 50

Order no.: PCE-TG 50

Portable handheld thickness gauge with a measuring range of 1.2 ... 200.0 mm / 0.05 ... 7.87 inches (steel) and adjustable ultrasound speed / velocity

PCE-TG 50 is a compact ultrasonic thickness tester or gauge used to measure the thickness of metal, glass, plastic and other homogeneous materials. This portable handheld material thickness gauge operates with an external ultrasonic contact transducer sensor probe and requires the use of coupling gel or paste. The probe directs ultrasonic waves through the coupling gel into the material to be tested. Since different materials conduct ultrasound at different speeds or velocities, the PCE-TG 50 material thickness gauge allows for ultrasound velocity adjustments to accommodate a wide variety of material testing applications.

With the PCE-TG 50 ultrasonic material thickness gauge, you can determine the thickness of metal, glass, plastic and other homogeneous materials in seconds. Operation of the ultrasonic material thickness gauge is easily carried out via the seven-button interface. Using the integrated calibration block, the measuring device can be calibrated onsite or in the field with minimal effort. Measured values ​​can be transferred to a PC using the optional software and connection cable (sold separately - see accessories for details). The software also offers the possibility to export the data into Microsoft Excel.



Features

- Measurement range: 1.2 ... 200.0 mm / 0.05 ... 7.87 in (steel)
- Accuracy: ± 0.5% v. Mw. ± 0.1 mm / ± 0.00393701 in
- Resolution: 0.1 mm / 0.001 in
- Ultrasound velocity (adjustable): 800 ... 9950 m/s / 2624.67 ... 32644.36 ft/s
- Adjustable ultrasound velocity (for thickness measurements of different materials)
- Requires use of contact gel or paste
- Features an integrated steel calibration block and user-friendly DIY calibration procedure
- Optional software and connection cable (sold separately) for data transfer to a PC - see accessories for details
Incl. calibration certificate



Specification



Measurement range

1.2 ... 200 mm / 0.05 ... 7.87 in (steel)

Accuracy

± 0.5% v. Mw. ± 0.1 mm / ± 0.00393701 in

Transducer

5 MHz frequency, 8 mm / 0.32 inch diameter; Probe support surface: 10.2 mm / 0.4 in diameter; Head: 15.4 mm diameter / 0.61 in

Resolution

0.1 mm / 0.001 in

Ultrasound velocity

800 ... 9950 m/s / 2624.67 ... 32644.36 ft/s (adjustable)

Display

4-digit LCD

Operating conditions

-10 ... 50°C / 14 ... 122°F; Relative humidity: < 80% RH

Calibration block

5.0 mm / 0.2 in steel (integrated)

Measuring units

mm or in (adjustable)

Material temperature

0 ... 50°C / 32 ... 122°F (permanent); 50 ... 85°C / 122 ... 185°F (for 5 minutes, then 30 minutes cooling below 50° C / 122°F)

Data interface

RS-232 port

Power supply

3 x 1.5V AAA batteries (approx. 250 hours of battery life)

Dimensions

Approx. 142 x 77 x 40 mm / 5.6 x 3.1 x 1.6 inches (handset)

Weight

Approx. 265 g / < 1 lb (handset with batteries and probe)



Accessories

Re-Calibration for Material Thickness Meter

Order no.: RE-CAL-MT

Re-Calibration for Material Thickness Meter

ISO re-calibration incl. certificate for material thickness meter. This is often required to comply with DIN ISO 9000.



- Calibration points are: 5; 10; 20; 50 and 100 mm

If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

Calibration certificates are issued specifically for the customer and are excluded from the right of return

Manufacturer: PCE Instruments

Price excl. VAT &. delivery
2 year Warranty



High temperature probe for PCE-TG 50

Order no.: HTP-TG 50

High temperature probe for PCE-TG 50

High temperature probe as optional accessory for PCE-TG series. Probe for use at high temperatures.

- Measuring range: 4 .. 100 mm / 0.15 ... 3.93"
- Operating temperature: -10 ... +300 °C / 14 ... 572 °F

Catalogue: Measuring Instruments / Test Meters / Material Thickness Meter

Manufacturer: PCE Instruments

Price excl. VAT &. delivery
2 year Warranty





Miniature probe for PCE-TG 50

Order no.: MP-TG 50

Miniature probe for PCE-TG 50

Miniature probe as optional accessory for PCE-TG series. Angled probe.

- Measuring range: 1.0 .. 50.0 mm / 0.03 ... 1.96"
- Operating temperature: -10 ... +60 °C / 14 ... 140 °F

Catalogue: Measuring Instruments / Test Meters / Ultrasonic Tester / Ultrasonic Testing

Manufacturer: PCE Instruments

Price excl. VAT &. delivery
2 year Warranty



Standard probe for PCE-TG 50

Order no.: ST-TG 50

Standard probe for PCE-TG 50

Standard probe as optional accessory for PCE-TG series. Angled probe.

- Measurement range 1.2 ... 200 mm / 0.05 ... 7.87 in (steel)
- Operating conditions -10 ... 50°C / 14 ... 122°F; Relative humidity: < 80% RH

Catalogue: Measuring Instruments / Test Meters / Ultrasonic Tester / Ultrasonic Testing

Manufacturer: PCE Instruments

£ 108.00

Price excl. VAT &. delivery
2 year Warranty

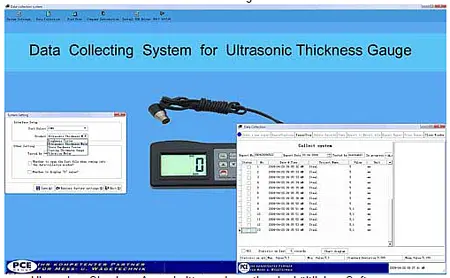

Software for PCE-TG Series

Order no.: PCE-SOFT-TG 50

Software for PCE-TG Series

PC-compatible software for PCE-TG series ultrasonic thickness gauge, tester or meter devices

Manufacturer: PCE Instruments

£ 44.00

Price excl. VAT &. delivery
2 year Warranty



Ultrasonic Contact Gel (120 ml)

Order no.: TT-GEL

Ultrasonic Contact Gel (120 ml)

Ultrasonic contact gel for use with ultrasonic contact transducers

- Improves contact between the transducer head and the material to be measured
- Protects material surfaces from the transducer head
- 120 ml size
- See downloads for MSDS

Manufacturer: Charles Tennant & Co (Eire) Ltd.



Similar items

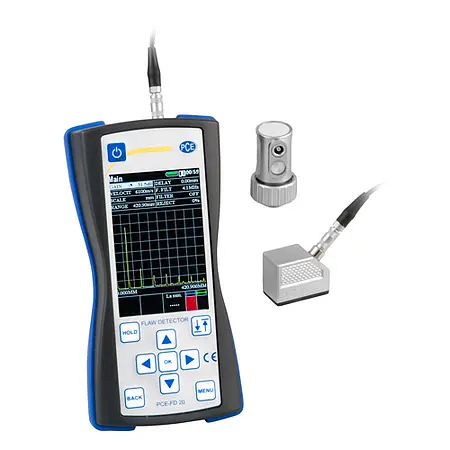

Ultrasonic Thickness Tester PCE-FD 20

Order no.: PCE-FD 20

Ultrasonic Thickness Tester PCE-FD 20

PCE-FD 20 is a portable ultrasonic thickness tester or ultrasonic thickness gauge with a large LCD screen that displays A-scan maps of ultrasonic signals as well as B-scan cross sections. Ideal for use in mechanical engineering, aerospace and metallurgical applications, this high-frequency ultrasound-based thickness meter uses a contact transducer (two different probes included; 45° and 90°) to measure material thickness and identify flaws and defects such as discontinuity in welds.


- Operating frequency range: 1 ... 10 MHz
- Measured time interval range: 6 ... 1000 microseconds (µs)
- Sound velocity: 1000 ... 9999 m/s



Catalogue: Measuring Instruments / Test Meters / Ultrasonic Tester / Ultrasonic Testing

Manufacturer: PCE Instruments

Price excl. VAT &. delivery
2 year Warranty



user-manual-pce-fd-20-ultrasonic-flaw-detector.pdf
Manual

Ultrasonic Thickness Tester PCE-USC 20

Order no.: PCE-USC 20

Ultrasonic Thickness Tester PCE-USC 20

PCE-USC 20 is a portable or benchtop ultrasonic thickness tester or ultrasonic thickness gauge with a 5.7" TFT color LCD screen. This ultrasound-based thickness meter uses one or two contact transducers (four different probes included; 90 °, 70 °, 60 °, 45 °) to measure material or wall thickness, detect flaws or defects in welds, and monitor the effects of corrosion on pipes and tanks.


- Measurement range: 0.5 ... 9999 mm (steel; longitudinal wave)
- Operating frequency range: 0.5 ... 20 MHz
- Sound velocity: 1000 ... 15000 m/s (continuously adjustable)
- AVG and DAC evaluation methods, display and probes delay, damping and
  reinforcing functions, export and reporting functions



Catalogue: Measuring Instruments / Test Meters / Ultrasonic Tester / Ultrasonic Testing

Manufacturer: PCE Instruments

Price excl. VAT &. delivery
2 year Warranty



man-ultrasonic-tester-pce-usc-20-en.pdf
Manual

Ultrasonic Thickness Tester PCE-TG 250

Order no.: PCE-TG 250

Ultrasonic Thickness Tester PCE-TG 250

PCE-TG 250 is a portable Ultrasonic Thickness Tester with an easy-to-read 4-digit display. This ultrasound-based Thickness Tester uses a contact transducer (included) to measure the thickness of coated and uncoated ferrous and non-ferrous metal, glass, plastic, and other homogeneous materials including aluminum, brass, copper, iron, lead, nickel, steel, gold, titanium, pyrex and quartz glass, nylon, polyethylene, and silicone rubber.


- Measurement range: 1 mm ... 250 mm / 0.04 in ... 9.84 in (steel), 2.5 mm ... 20 mm / 0.1 in ... 0.79 in (coated surfaces)
- Accuracy: ± 0.01 mm / ± 3.94 mil
- Resolution: 0.01 mm / 0.1 mm, 0.39 mil / 3.94 mil
- Sound velocity: 1000 m/s ... 9999 m/s / 3280 ft/s ... 32805 ft/s



Catalogue: Measuring Instruments / Test Meters / Ultrasonic Tester / Ultrasonic Testing

Manufacturer: PCE Instruments

Price excl. VAT &. delivery
2 year Warranty

Test Instruments manufacturerREQUEST A QUOTE ADD TO BASKET

pce-tg-250-manual-1001874_1001872.pdf
Manual

Ultrasonic Thickness Tester PCE-TG 100

Order no.: PCE-TG 100

Ultrasonic Thickness Tester PCE-TG 100

The PCE-TG 100 is a compact ultrasonic thickness tester for homogeneous materials. This ultrasonic thickness tester PCE-TG 100 works with an external ultrasonic probe; this probe conducts ultrasonic waves into the material to be tested. Different materials conduct ultrasound at different speeds, so you can choose different ultrasonic speeds on the PCE-TG 100 Ultrasonic Thickness Tester.


- Measurement range: 0.8 mm ... 225 mm / 0.03 in ... 8.86 in (displays in mm only)
- Adjustable sound velocity
- Suitable for metals, glass, plastics
- 5 MHz probe
- External sensor
- Material thickness

Catalogue: Measuring Instruments / Test Meters / Ultrasonic Tester / Ultrasonic Testing

Manufacturer: PCE Instruments



What's In The Box:

1 x PCE-TG 50 ultrasonic thickness tester
1 x Ultrasonic contact transducer sensor probe
1 x Container of coupling gel
3 x 1.5V AAA batteries
1 x User manual
1 x Calibration certificate
1 x Carrying case
